Description
What is special about UNIGLAS® SUN?
The cooling costs in summer often amount to several times the heating costs in winter. UNIGLAS® SUN sun protection glass helps to positively influence the energy balance. Glas Marte offers a wide range of neutral sun protection insulating glass, especially for installation situations that demand high technical properties of the insulating glass. These types of glass can also be used for stepped insulating glass with edge enamel.
This insulating glass is ideal for:
- large facades in commercial buildings and private houses
- conservatories (roof/wall)
- new buildings
- renovation of old buildings
- shop windows
Optional: Cross bars with insulating glass
Gregorian windows give a building extra comfort and friendliness. Glas Marte offers two versions:
- Vienna cross bars (real wood cross bars)
- The cross bars are located in the cavity of the insulating glass. Therefore, cleaning is particularly convenient. These cross bars are available in all common RAL colours as well as 2 colours (inside and outside).
- E-cross bars (Europa cross bars)
In addition to the cross bars in the cavity, real cross bars are also placed on the glass. - Helima cross bar
gold shining
Technical details
Lowest Ug value
0.5 W/m²K
Maximum light transmittance EN 410
70%
Minimum total energy transmittance EN 410
24%
Maximum light reflection to the outside EN 410
15%
Product variants
UNIGLAS® TOP double (in multiple versions: see product overview) | UNIGLAS® TOP triple (in multiple versions: see product overview)
Test certificates
Certified external monitoring (CE marking) | Impact strength according to DIN 52337 | Impact test EN 12600 | Ball drop test according to DIN 52290 and EN 356
Insulating glass construction
Double | Triple

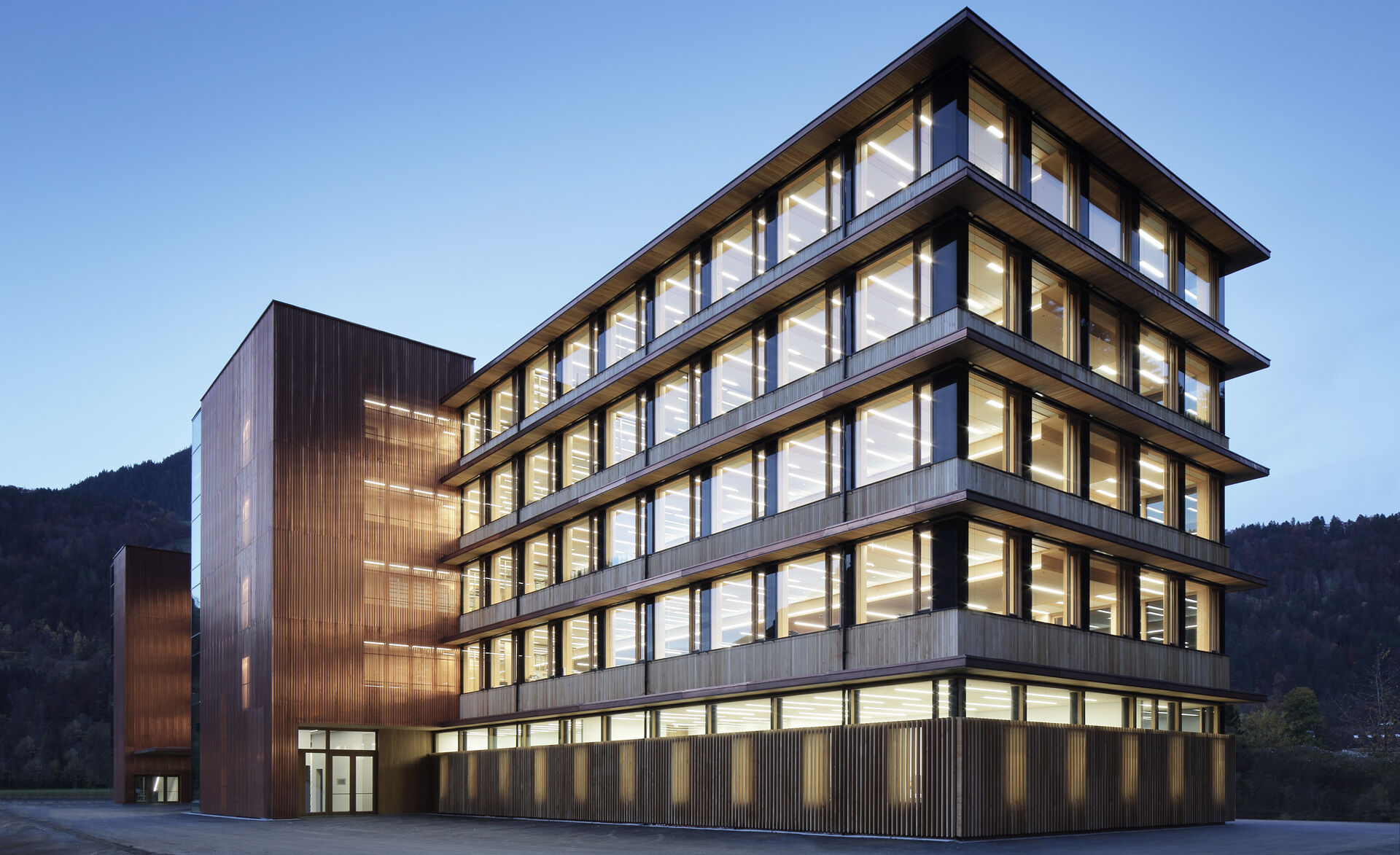

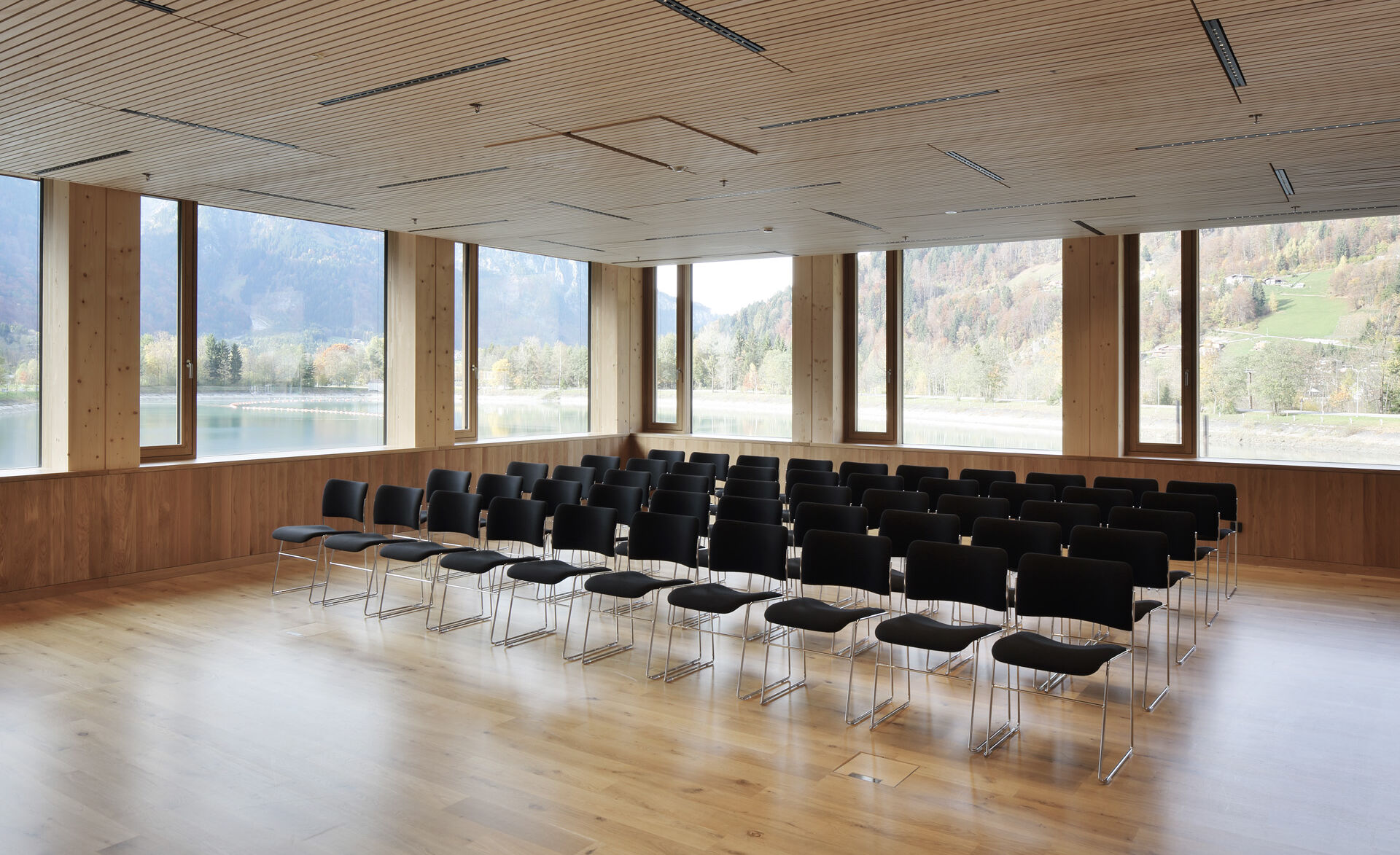

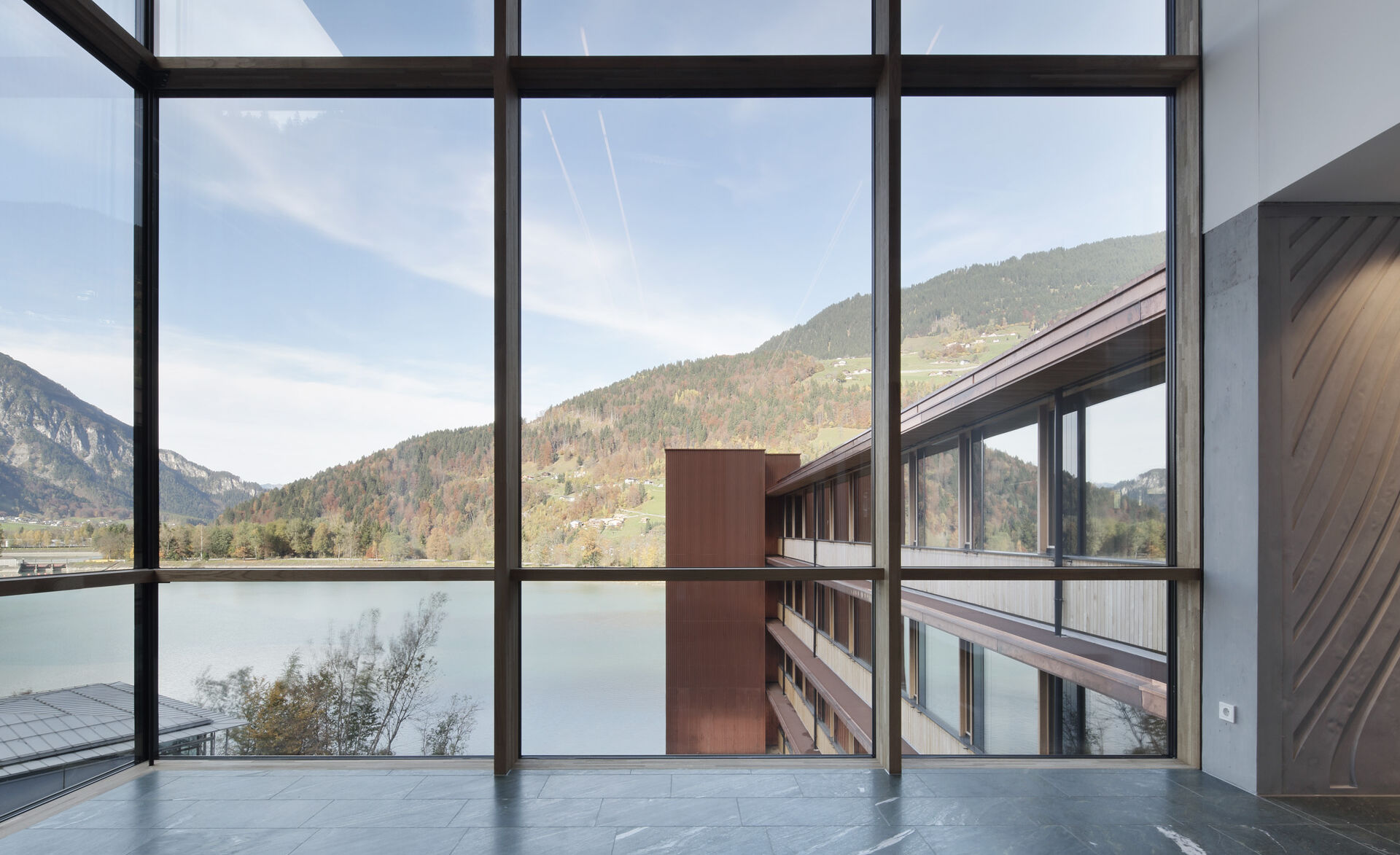

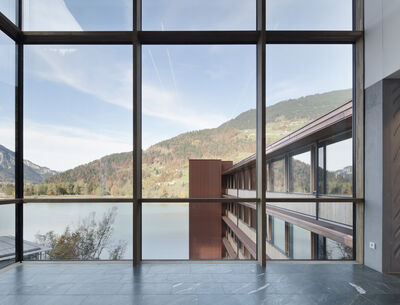

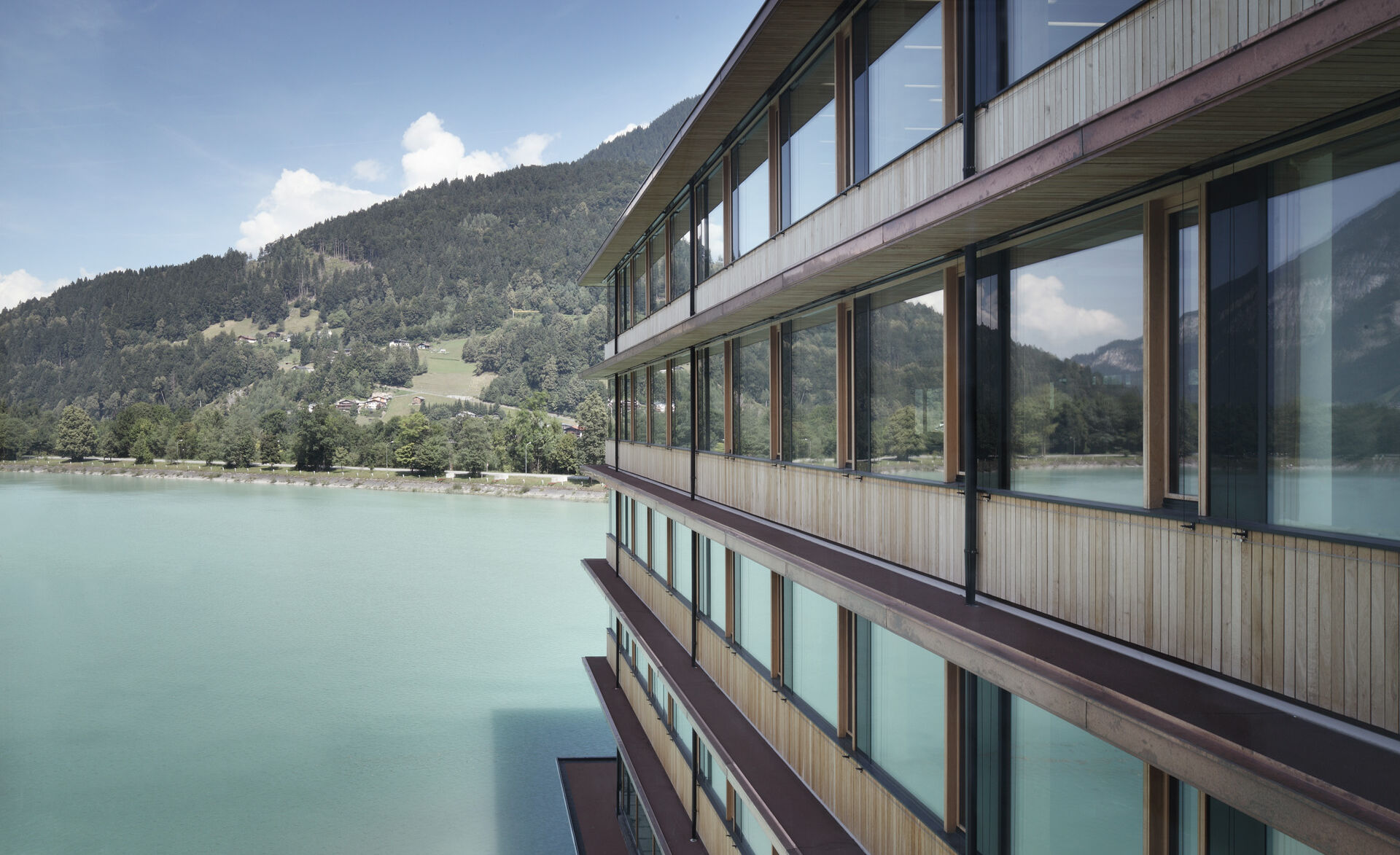

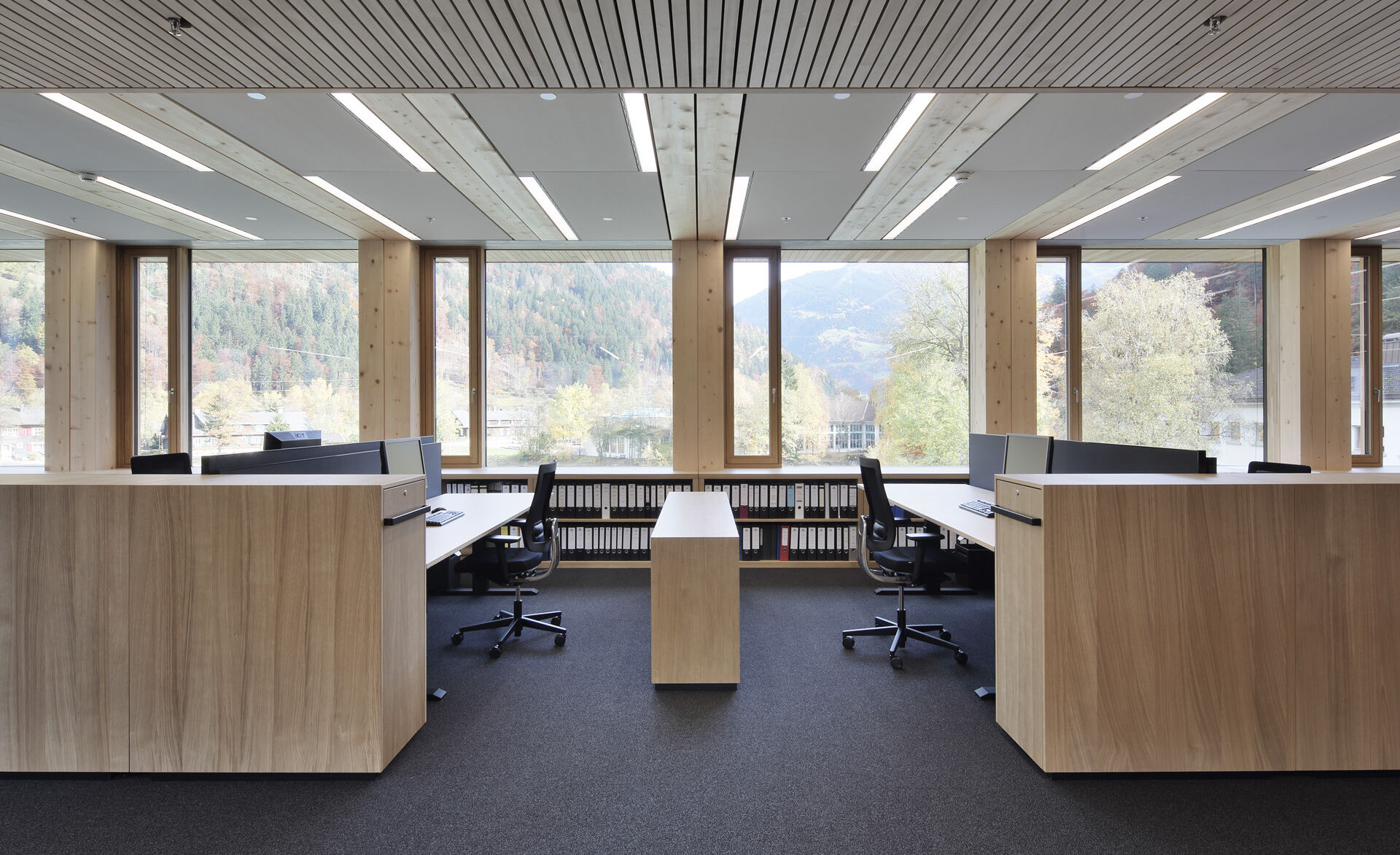

UNIGLAS® SUN in use
Similar solutions
Heat protection
Combination layers
UNIGLAS® TOP
- Heat protection
- Sun protection
- max. light reflection to the outside: 15%
Soundproofing
UNIGLAS® PHON
- Sound insulation
- Rw 50 dB | C; Ctr (-2;-6)
- max. light reflection to the outside: 15%

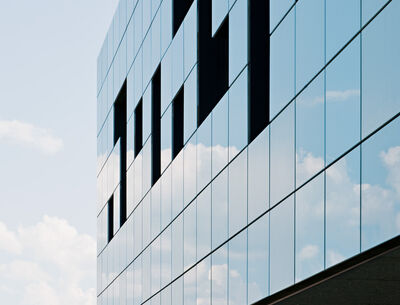

Design

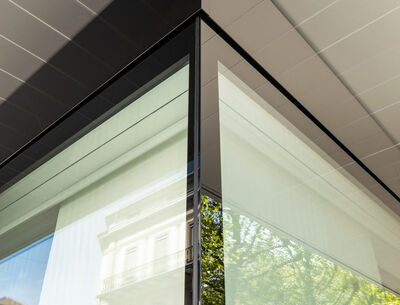

UNIGLAS® GLASSICS-U EDGE SEAL RETAINER
- Edge seal retainer
- Flush
Design
UNIGLAS® INSULATING GLASS TEA EDGE ENAMEL
- Protection of the coatings
- invisible construction elements
