Description
In order to cover structural elements in all-glass construction or to protect the edge seals of insulation glazing against UV rays, glass panes are often provided with edge enamelling. No removal of edge coating takes place with TEA edge enamel (True Edge Application). Instead, the enamel merges with the coating of UNIGLAS® heat protection, sound reduction and sun protection insulating glass to form a permanently stable bond.
Technology:
By means of TEA edge enamel, a material-dissolving ceramic paint (enamel) is applied directly to the magnetron sputter coating. This is dissolved during the heat treatment and fuses with the glass to form an extraordinarily stable bond. After cooling, the coating material is completely embedded in the enamel.
Tested quality:
TEA edge enamel can be used on coated GM TSG SECURMART® or GM HSG SECURMART®. This edge enamelling technology is certified by ift Rosenheim for structural bonds according to ETAG 002. In addition, Glas Marte is the only insulating glass manufacturer to hold a certificate for static bonds from the DIBt (ETA approval).
UNIGLAS® INSULATING GLASS TEA EDGE ENAMEL is ideal for:
- Glass slat windows
- Glass fins

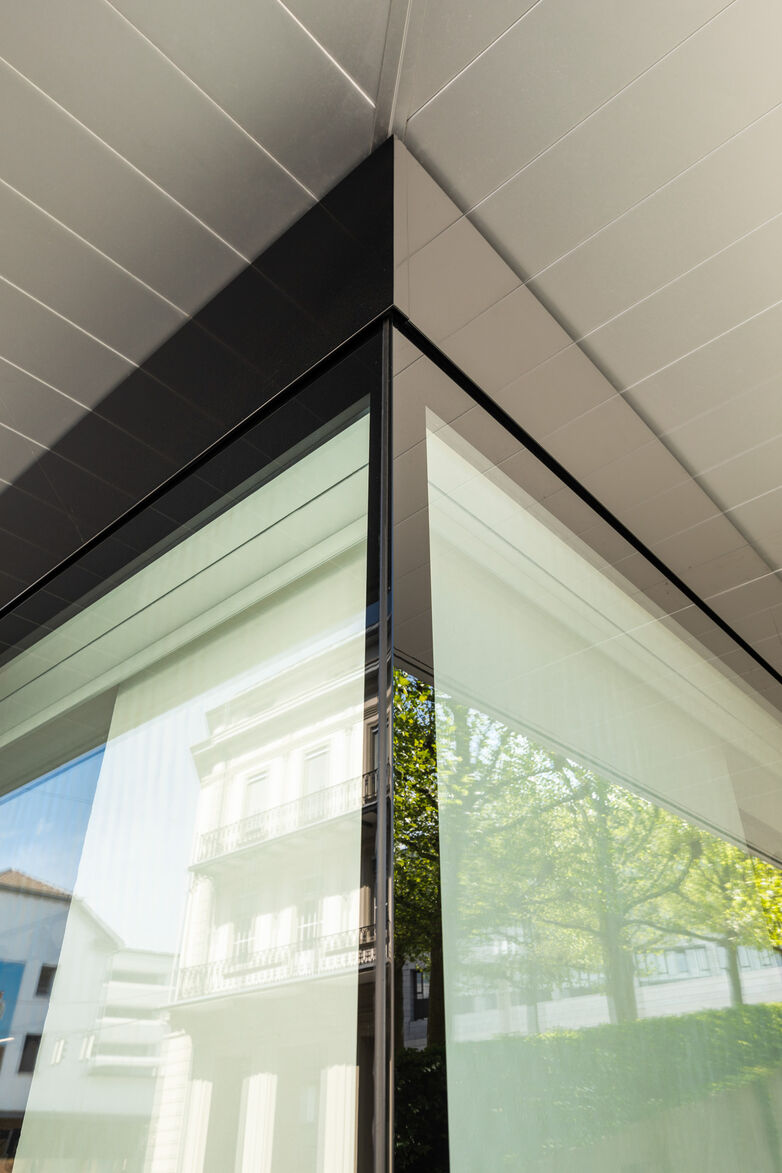

- Stepped glazing and all-glass corners
- Structural glazing bonds
- Roof glazing with overhanging glass step
Technical details
Similar solutions
- Heat protection
- Sun protection
- max. light reflection to the outside: 15%
- Sound insulation
- Rw 50 dB | C; Ctr (-2;-6)
- max. light reflection to the outside: 15%
- Sun protection
- maximum light transmittance: 70%
- min. total energy transmittance: 24%
- Edge seal retainer
- Flush
