GM PUNTO®

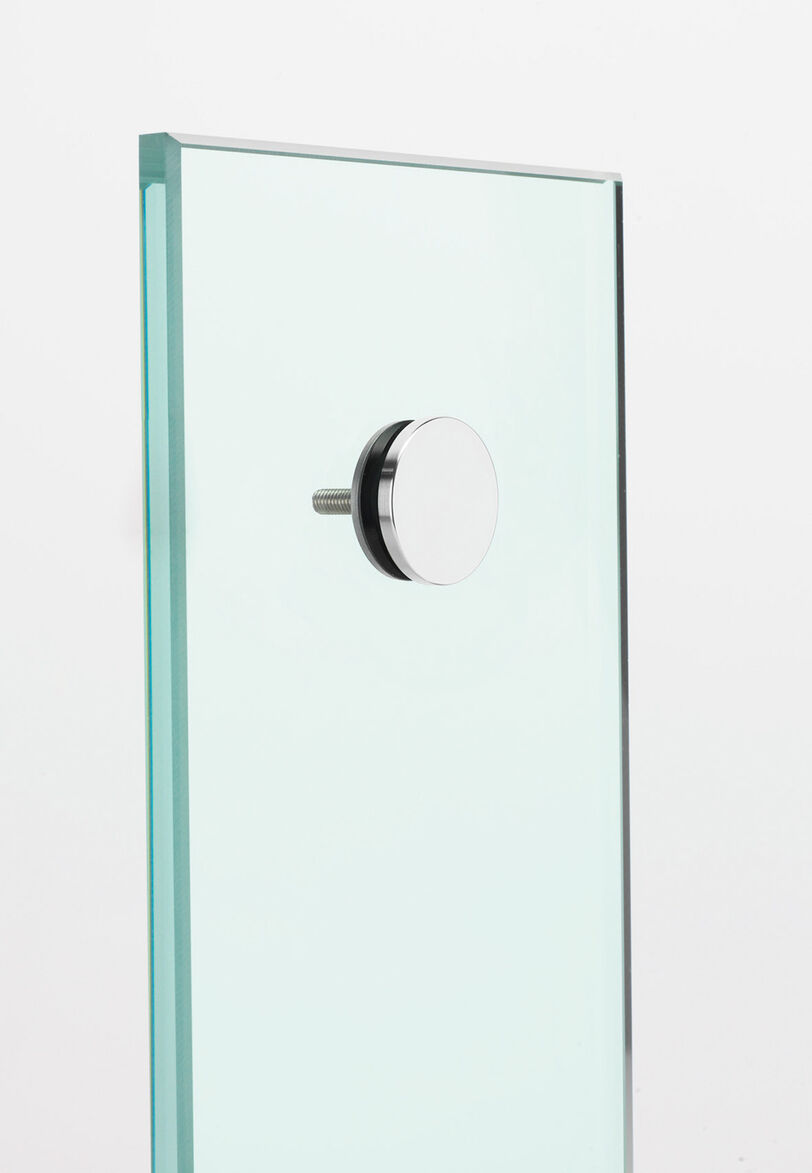

Attached, rigid point holder for indoor and outdoor use

  • simple and rational fastening
  • Glass thicknesses from 3 to 13.5 mm
  • countersunk head screws for assembling all plate materials
  • soft bearing protects glass bore and keeps the element to be fastened at a distance from the substructure.

Description

This point holder is ideal for:

  • Glazing in the sanitary area

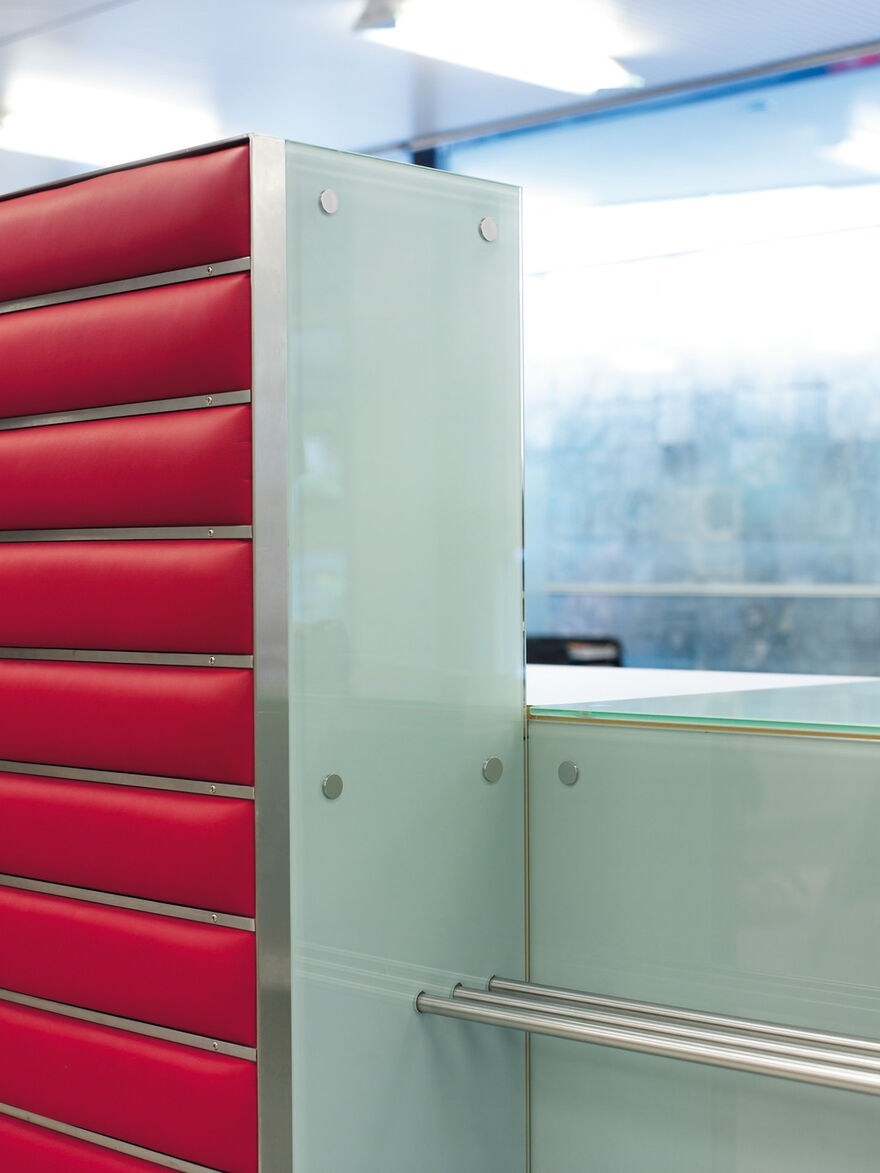

  • Furniture construction
  • Shop, trade fair and display construction

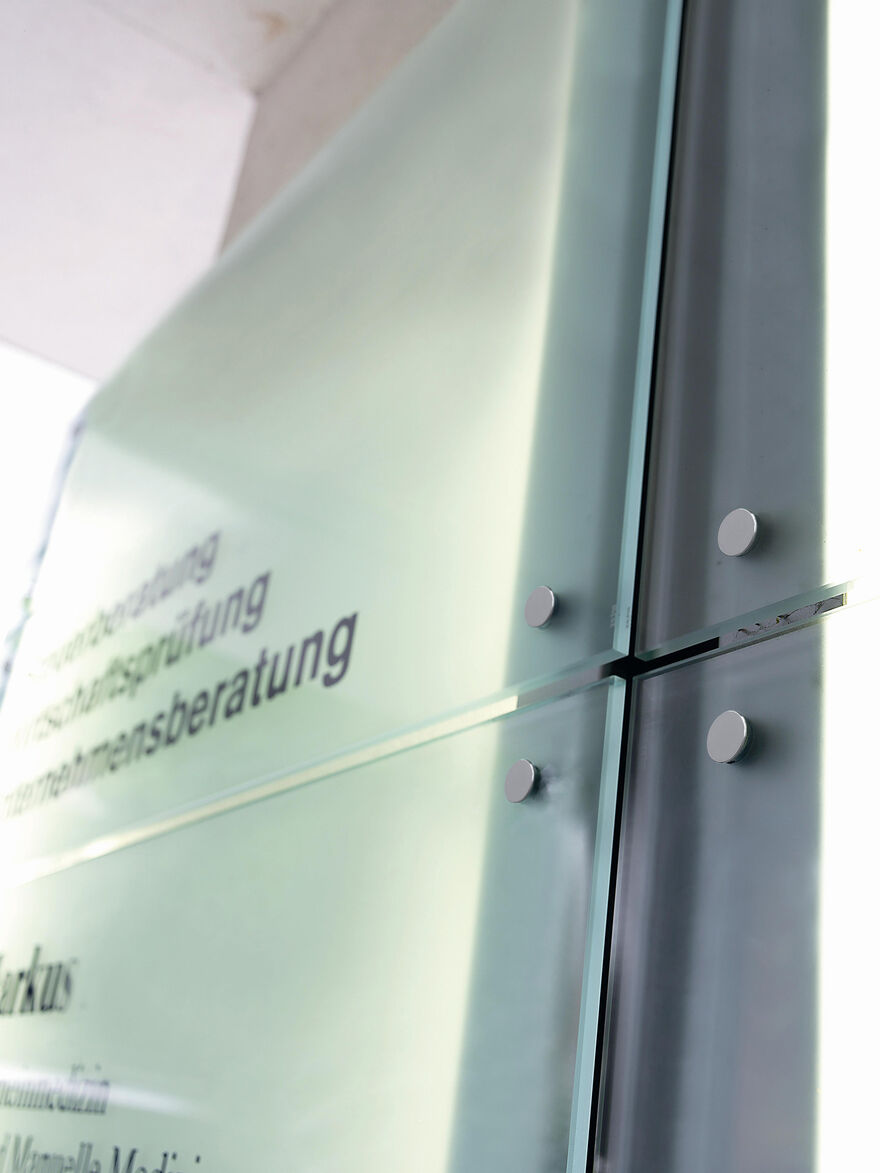

  • Fastening of signs and door signs

Technical details

Glass thicknesses
3–13.5 mm
Diameter
13, 25 and 36mm
Product variants
GM PUNTO® 13: glass thickness 3 – 6 mm | GM PUNTO® 25 (with or without bearing washer): glass thickness 4, 6 and 8 – 10 mm | GM PUNTO® 36 (with or without bearing washer/spacer): glass thickness 8 and 10 – 13.5 mm
Material
Cover plate: Polished stainless steel | Clamping and bearing washer: ZDG | Soft bearings: Silicone
