Description

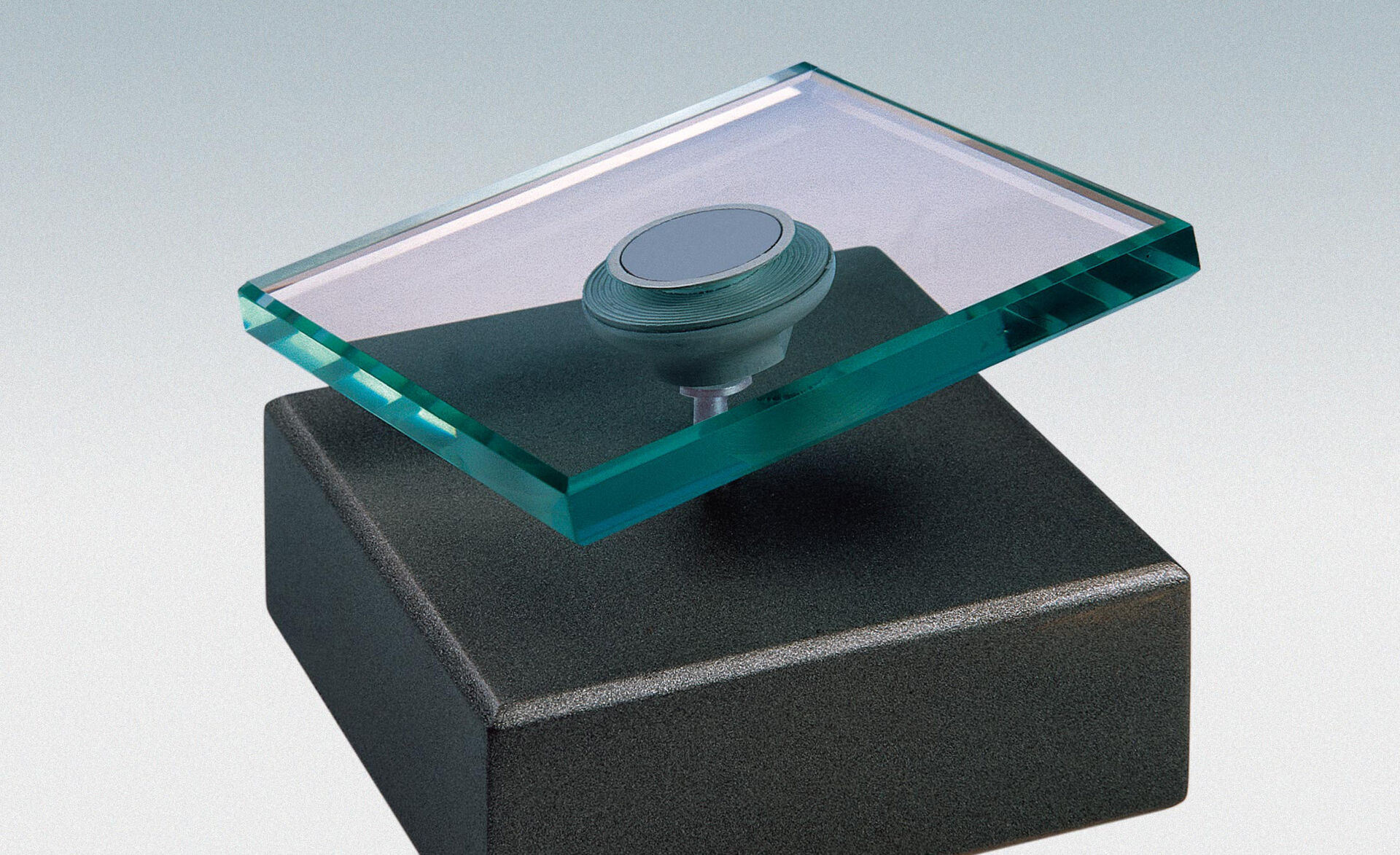

With the flush-mounted point holder, glass elements are fastened in the indoor area without weight removal. In a very elegant way. Because the holder is articulated, angular or adjustment errors in the substructure are easily compensated. By screwing in the screw to different depths, unevenness such as recesses or slants, is eliminated with only one type of holder. This fastening system is suitable for glass thicknesses from 8 to 12 mm. The customer provides hanger bolts or threaded pins with a diameter of 6 mm. The point holder is pre-assembled on the glass and screwed directly to the substrate from the outside surface. This direct mounting significantly shortens the installation time. Visually, GM PICO® LORD impresses with its flush mounting and its material: It is made of high-quality, technical plastic, in black or light grey. Cover plates made of nickel-plated or gold-plated brass seal the point holder.
The following types of glass are recommended for the GM PICO® LORD:
- GM TSG SECURMART®
- GM TSG COLORMART®
- Mirrors
- Float glass
- Wired glass
This point holder is ideal for:
- Wall panel cladding
- Kitchen splashbacks
- Glazing in the sanitary area
- Mirror walls
- Glass ceilings
- Furniture construction
