Description
With our screen printing process, we provide a wide range of design options for your glass applications in precision technical work.
After all desired processing of the glass has been completed, ceramic, lead-free paints are applied through a fine-mesh fabric. Our screens are made using our own decors – stripes, dots and squares in different sizes and different arrangements – and are constantly being further developed. In addition, your files, drawings and photos serve as a template for very special applications. In the prestressing process, the applied paints are baked at a temperature of more than 600 °C and thus firmly connected to the glass surface.

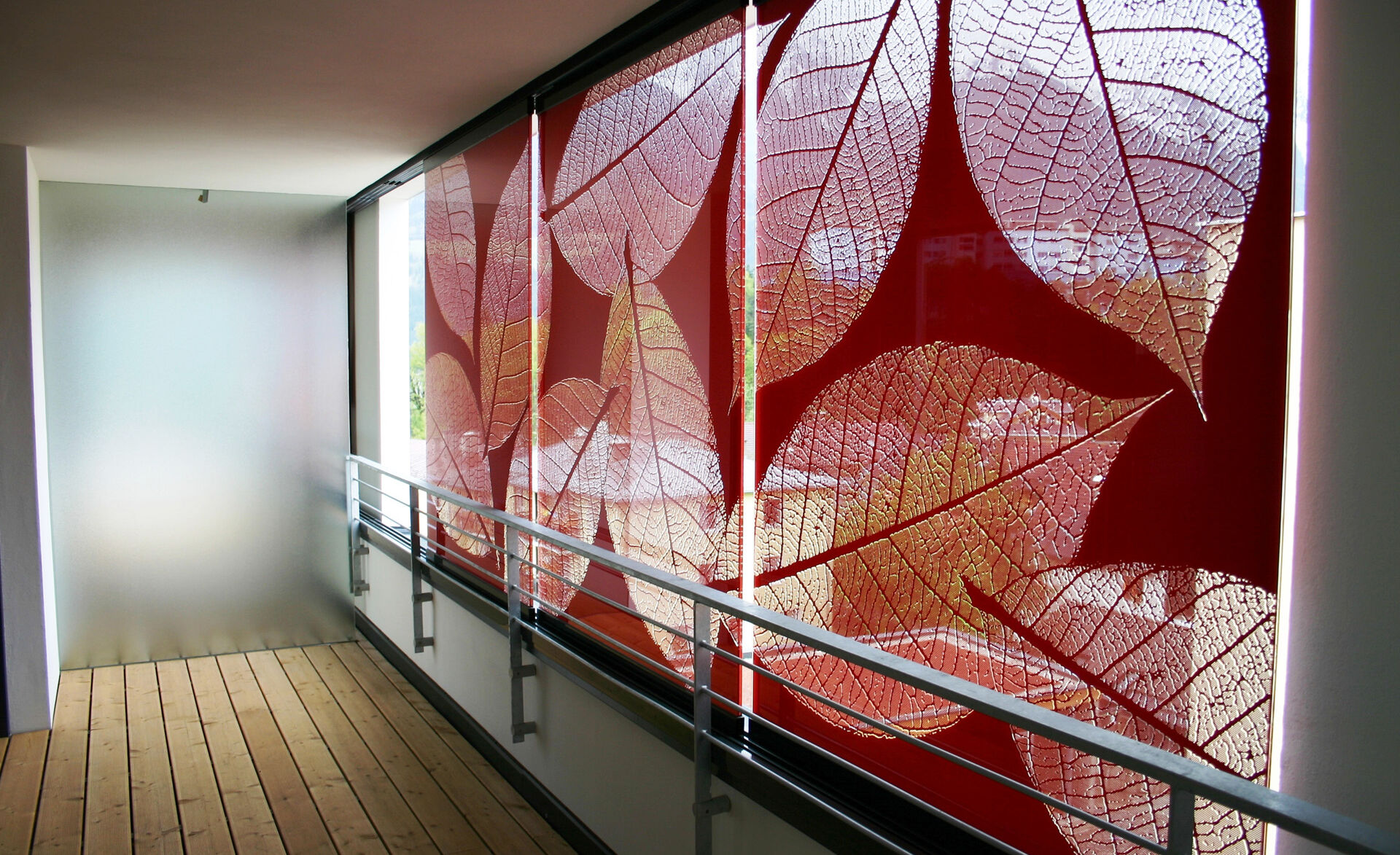

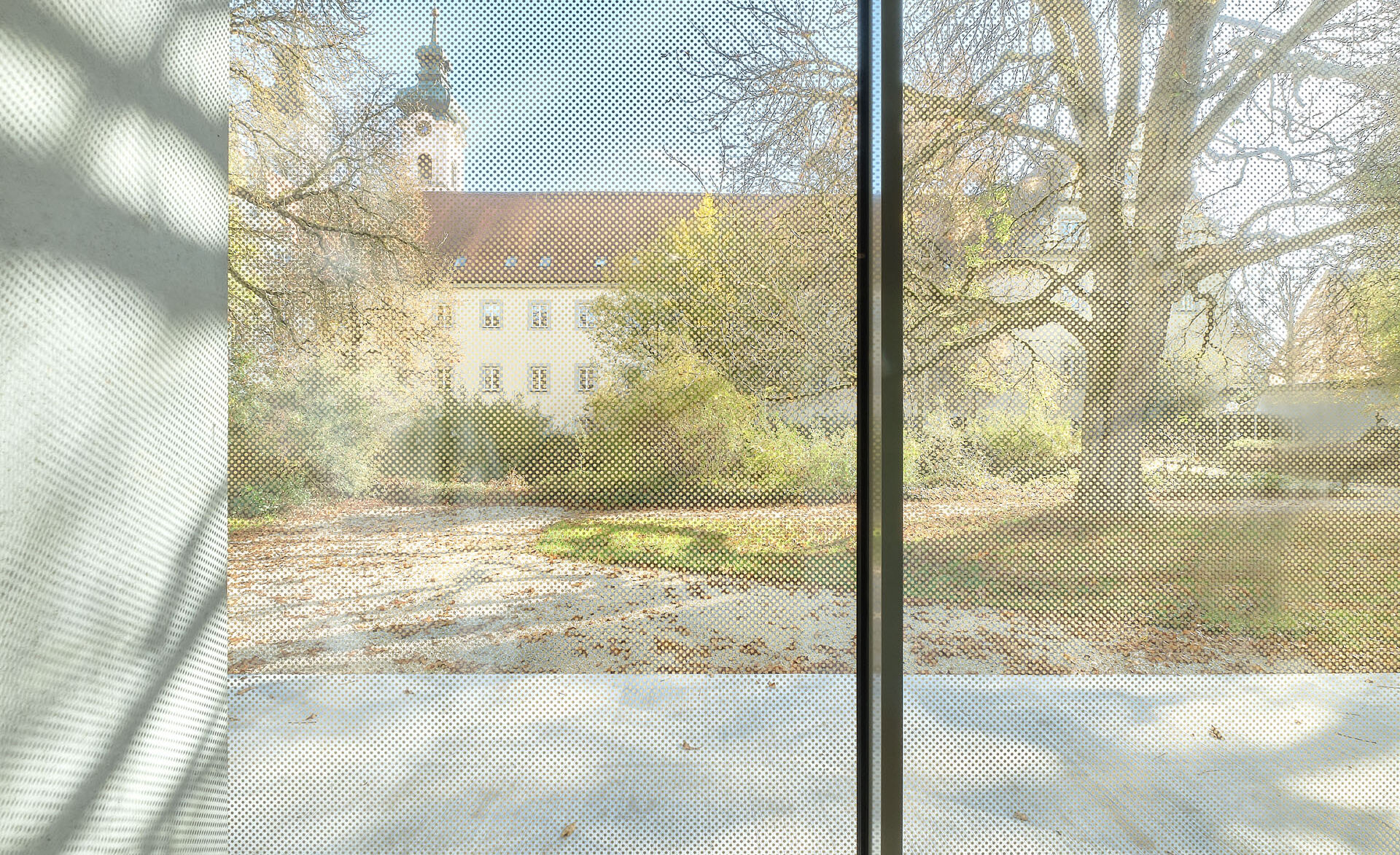

GM PRINTMART® is ideal for:
- Facades
- anti-slip stairs and floors
- Sight screen
- Sun protection
- (partition) walls
- Sliding doors
Technical details
Glass types
TSG, HSG, LSG
Glass thicknesses
6, 8, 10 and 12 mm
Minimum glass dimensions
250 x 400 mm
Maximum glass dimensions
GM standard decors: 2,000 x 4,000 mm | individual motifs: 2,460 x 5,900 mm
Miscellaneous
Special dimensions and "extra-white" on request
